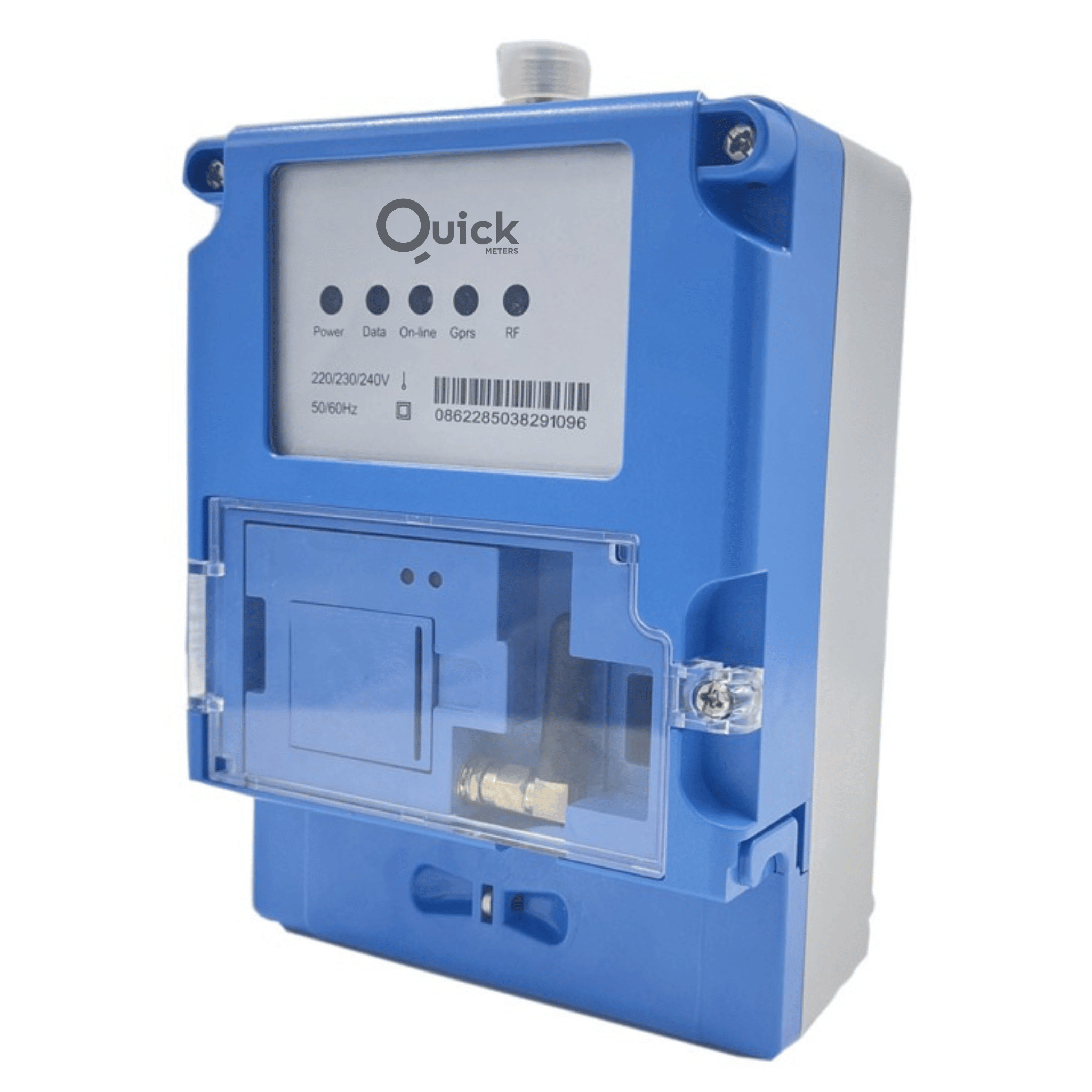

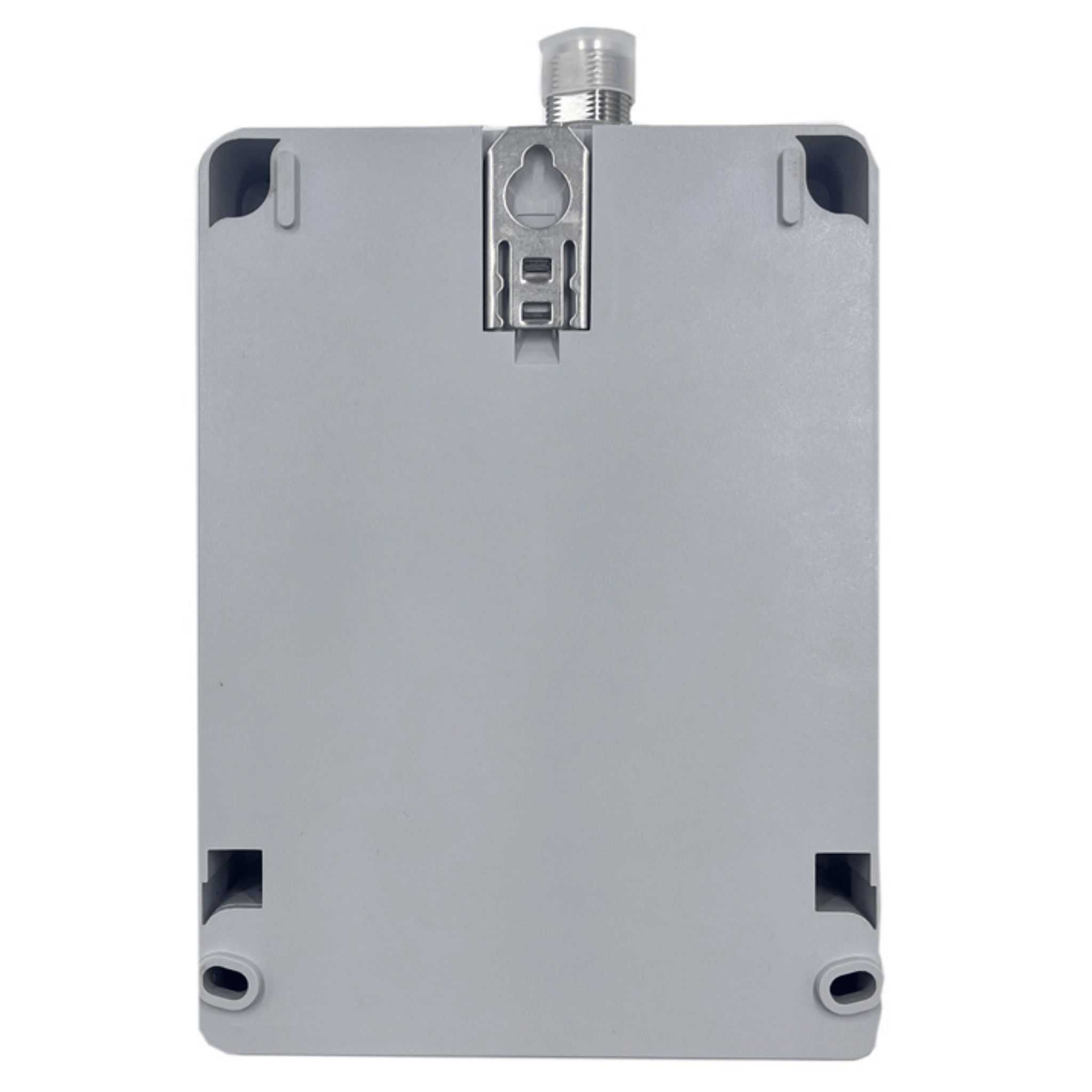

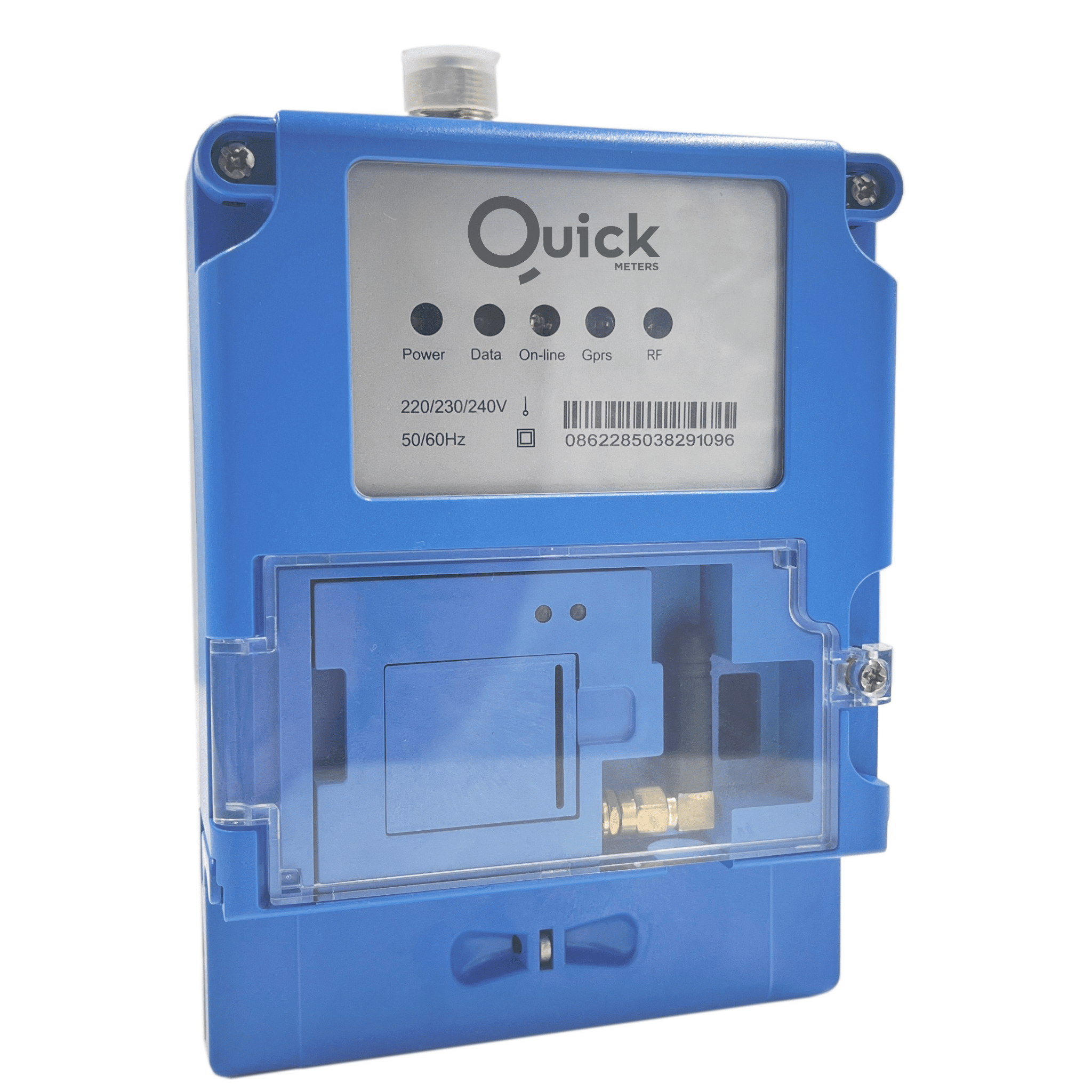

QMS-G1 Smart Gateway
QMS-G1 Smart Gateway is dedicated to Smart Metering application and designed as a gateway between metering devices and Quick Meters Software. Creates two-way communication from metering points, performs task setting, data collection, data transmission, meter management, and RF network management. Utilizes LORA-RF for downlink communication to smart meters and GPRS for uplink communication.
Supported Payment Methods
Features
Two-Way Communication
LORA-RF downlink to smart meters and GPRS uplink to Quick Meters Software for seamless data exchange.
Data Collection
Collects total consumption, historical daily & monthly consumption, meter parameters, status, and real-time data.
Tamper Detection
Automatic tamper event recording and upload to the head-end system for security monitoring.
Easy Installation
BS mounting design with IP54 protection grade. Waterproof and dustproof with 5 LED status indicators.
Technical Specifications
| Working Voltage | AC 160V-300V |
| Frequency | 45Hz-65Hz |
| Working Temperature | -25°C to 70°C |
| Humidity Requirement | 95% |
| Communication Module | GPRS/LORA-RF |
| RS485 Port | 115200bps |
| Connected Meters | Up to 300 meters |
| Maximum Operating Current | 500mA |
| Current in Sleeping State | 0.2mA |
| Downlink Communication Range | 1000m |
| Dimension | 158mm × 110mm × 71mm |
| Weight | 0.7 kg |
